Mini Excavator
ME10 Mini Excavator
General Information

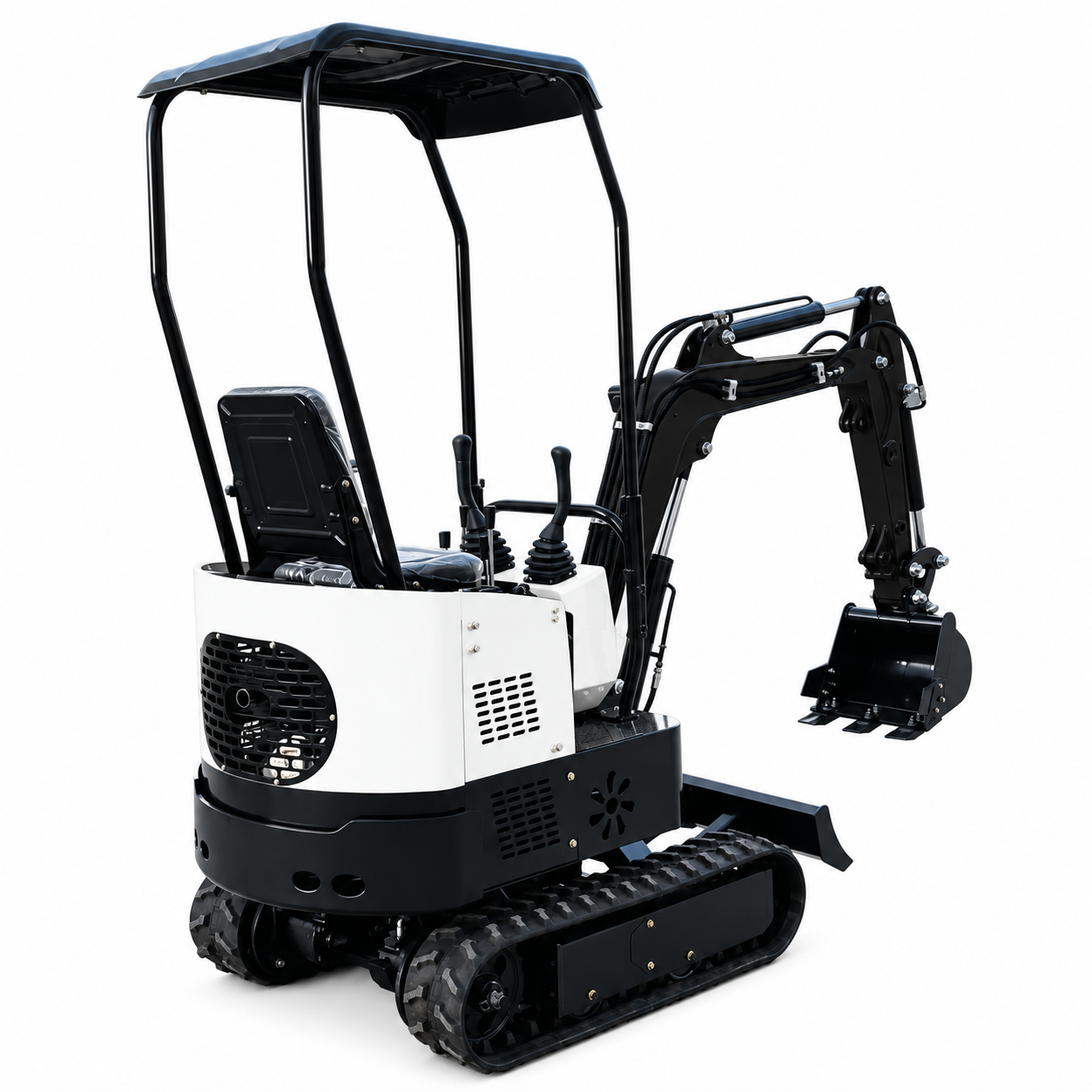

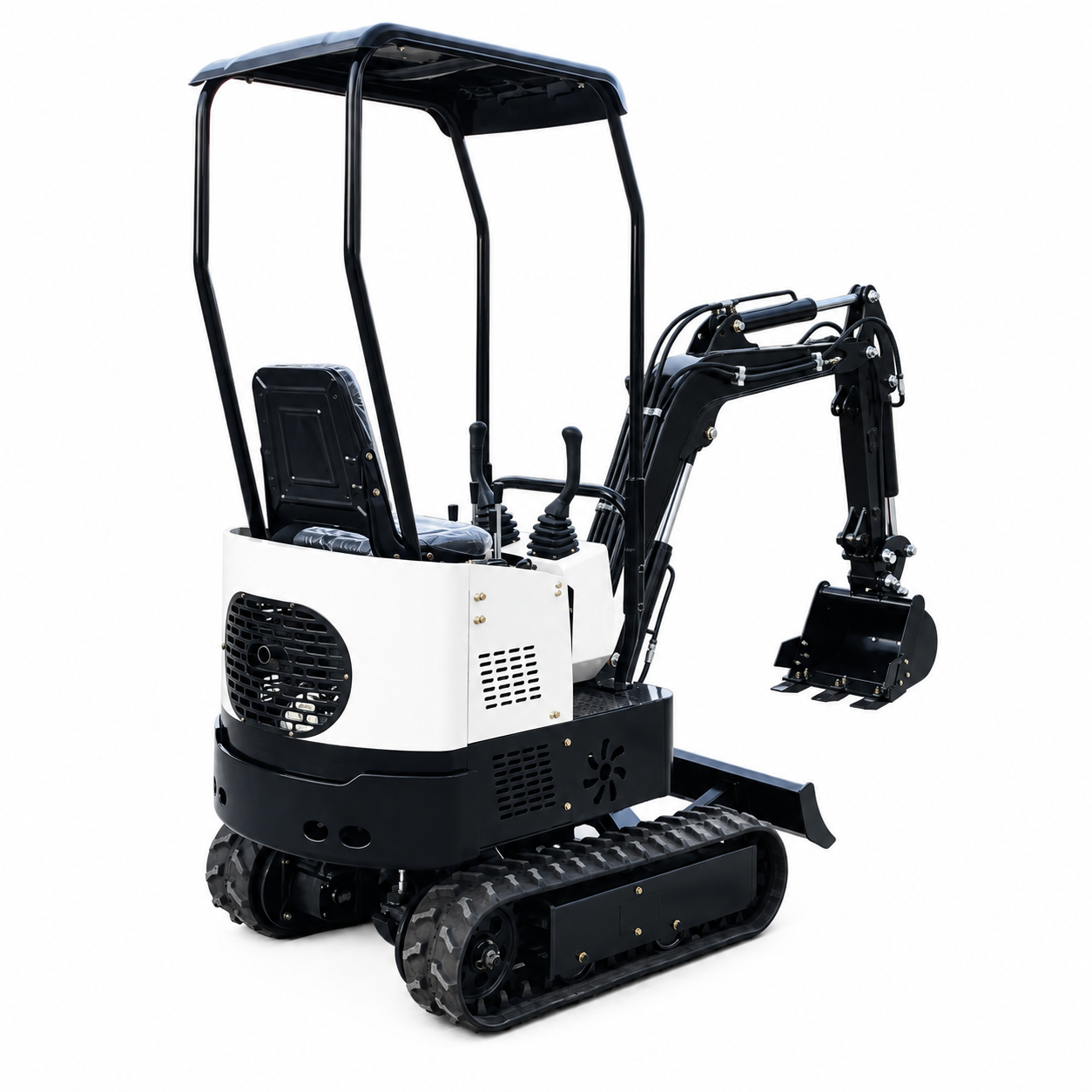

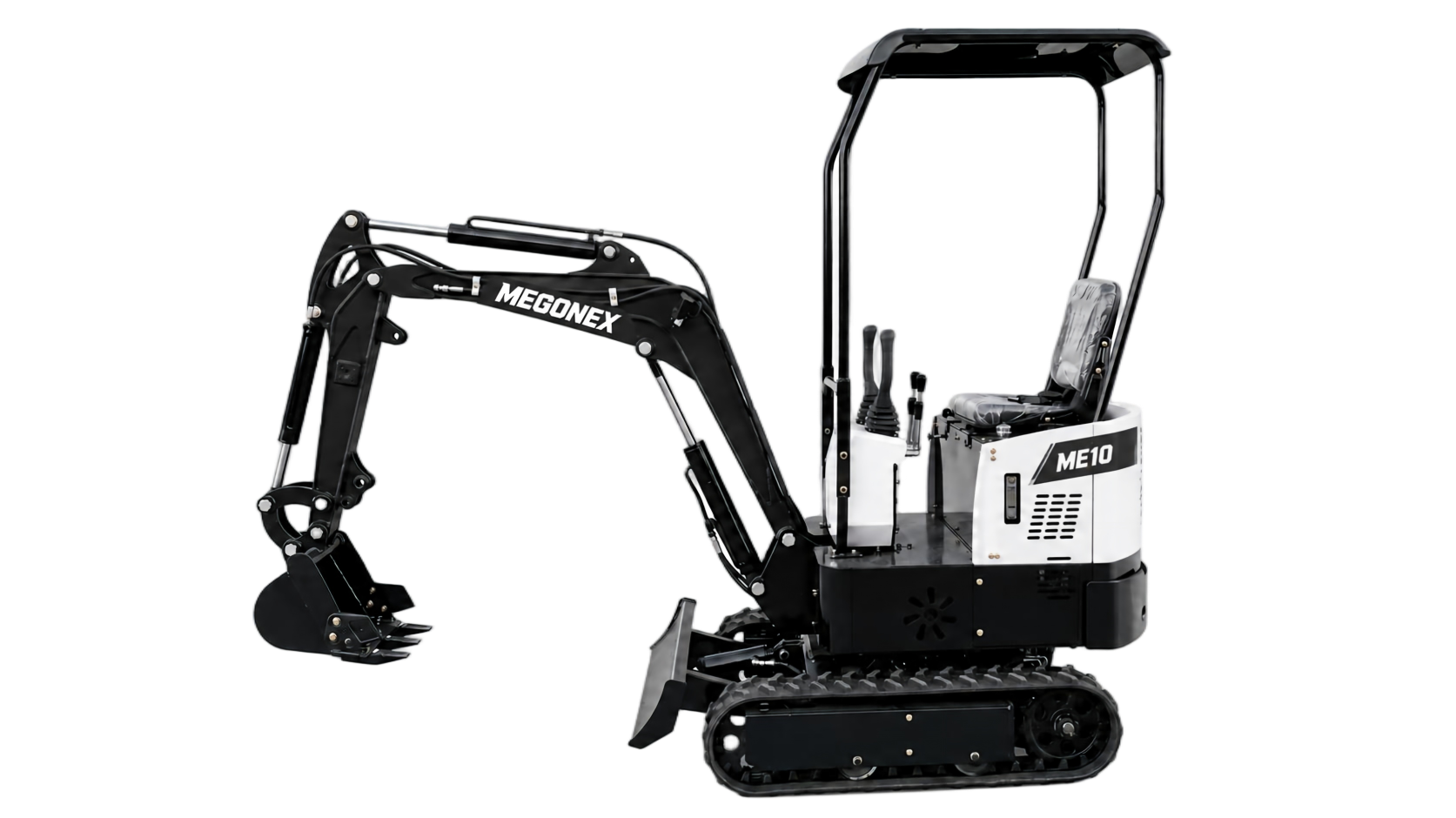

ME10 is a compact crawler mini excavator with an 850 kg operating weight, KOOP KD192FE engine, 8.6 kW rated power and 0.018 m³ bucket capacity.
Technical Specs
ENGINE
- Fuel Tank Capacity
- 6.6 L
- Engine
- KOOP KD192FE
- Rated Power
- 8.6 kW
HYDRAULIC SYSTEM
- Hydraulic Oil Tank Capacity
- 10.9 L
- Hydraulic System
- Gear Pump
LOADER PERFORMANCE
- Bucket Capacity
- 0.018 m³
- Bucket Width
- 400 mm
- Max. Digging Reach
- 2507 mm
- Max. Digging Depth
- 1520 mm
- Max. Digging Depth Of Dozer Blade
- 209 mm

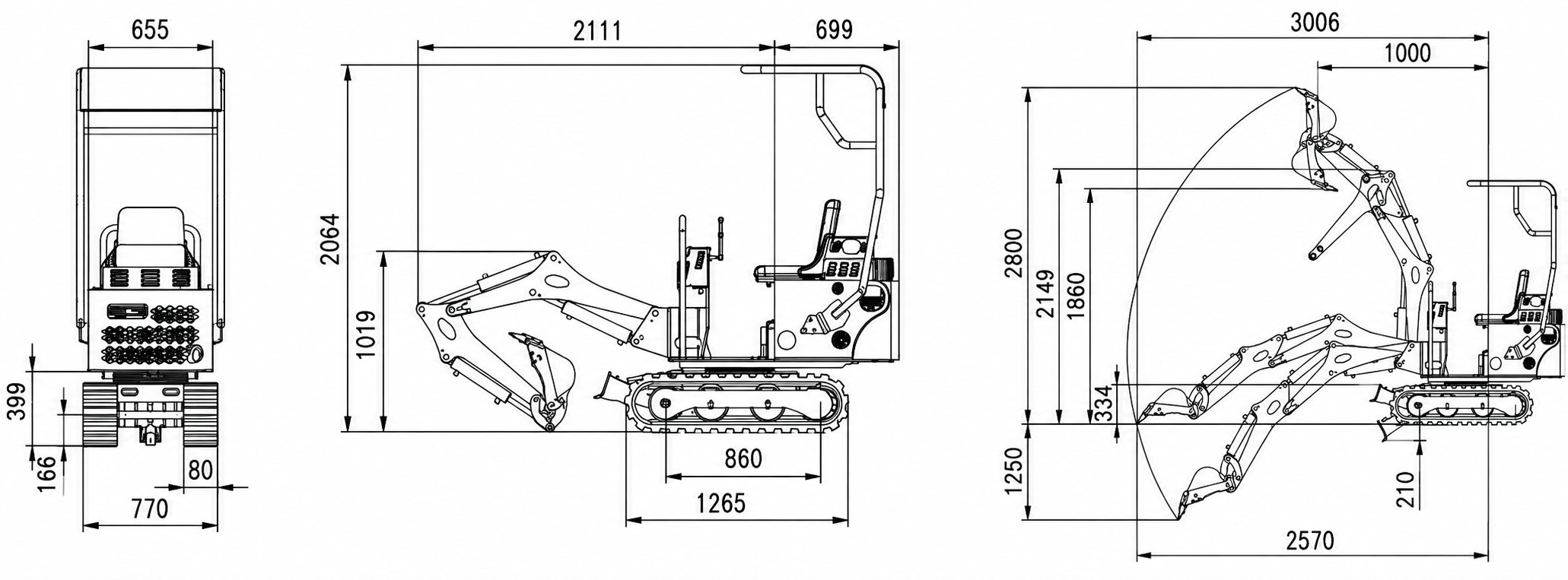

OPERATING WEIGHT & DIMENSIONS
- Operating Weight
- 850 kg
- Overall Dimensions (L*W*H)
- 2274*935*2157 mm
TECHNICAL DATA
- Model
- ME10
- Max. Gradeability
- 15°
- SKU
- 99001
- Track Width
- 180 mm
- Track Length
- 1235 mm
- Cab Width
- 934 mm
- Travel Speed
- 2.1 km/h
- Swing Motor
- Keen
- Swing Speed
- 9 r/min
- Max. Working Height
- 2101 mm
- Max. Dumping Height
- 1494 mm
- Boom Swing Angle
- L43° / R19°
- Min. Swing Radius
- 1603 mm
- Swing Radius
- 850 mm
- Swing Angle
- 360°
- Max. Lifting Height Of Dozer Blade
- 153 mm
